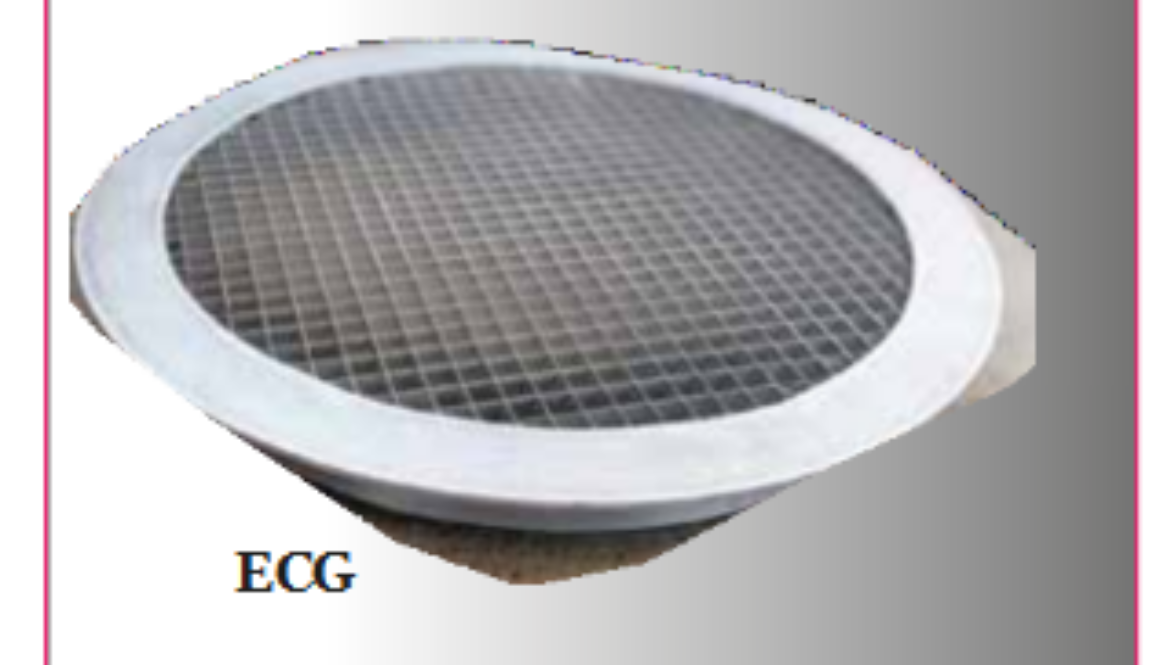

AEROSYS is manufacturing best designed egg crate grilles to suit in the commercial & industrial need for low resistance, high to medium volume return or exhaust grille. The free area of egg crate grille is 90 percent of the nominal area which permits the egg crate grilles to perform better in the return stages. This also helps in low pressure drop and low noise level. The egg crate grille can be used as either ceiling mounted or wall mounted air terminal device. The construction of egg crate grille is of aluminum strips assembled together to form an equally distributed squares.

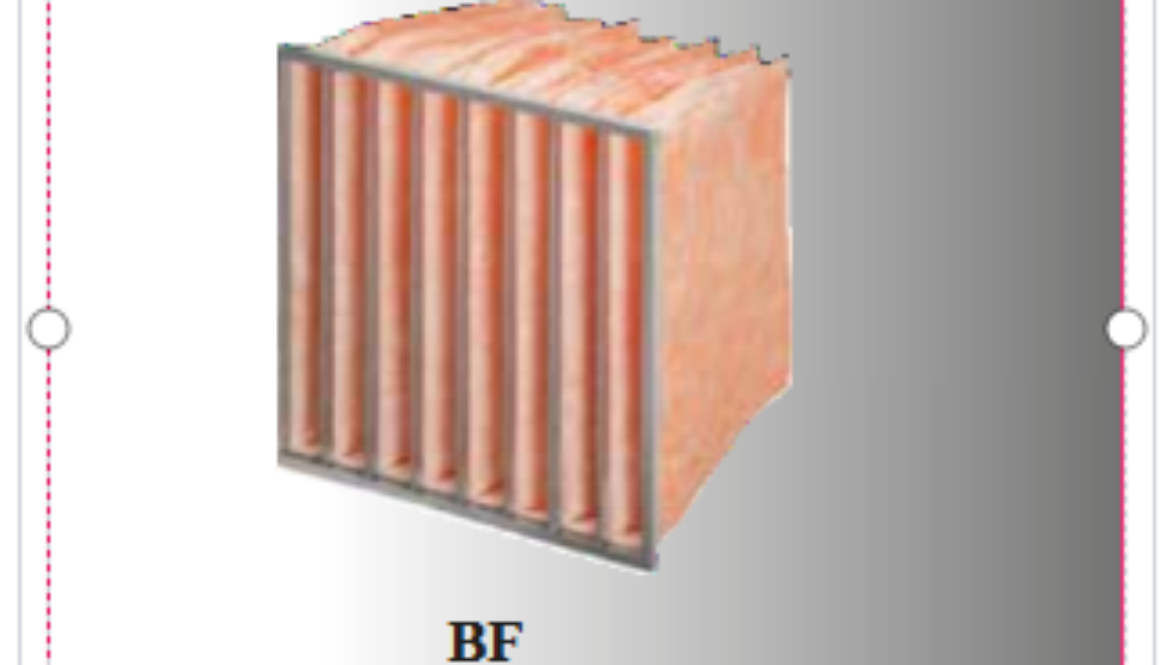

AERO 3 – Galvanized steel / Stainless steel Frames. Models: AERO 3 – 4″ / 6″ / 8” Leakage proof Frame styles. AEROSYS manufactures a complete line of bag filters for various residential, commercial and industrial applications. These are availablein standard, special and custom sizes, to meet virtually every air filtration requirement. They are the highest quality and efficiency obtainable and feature for long lasting optimum performance. Bag filters, which are effective filters and are specially designed for applications in centralized air-conditioning systems for separating line dust where arduous operating conditions exist. Strong ducted casing in galvanized / stainless sheet steel with standard cell frames is used for mounting bag filters. The filter medium is from high quality chemical fiber or glass fiber for separation of fine dust down to aerosols. The bag filters are fixed in to the casing by means of standard cell frames complete with perimeter sealing strips and quick release clamps. This system ensures accurate sealing between the frame and the bag. The material used, manufacture and finish of the bag filters provide good distribution of air and good corrosion resistance

AERO 2 – Aluminum / Galvanized steel / Stainless steel Frames. Models: AERO 2 – 4” / 6”. Leakage proof Frame styles. AEROSYS manufactures a complete line of synthetic filters for various residential, commercial and industrial application. These are available in a wide range of standard, special and custom sizes, designs and shapes to meet virtually every air filtration requirement. They are of the highest quality and efficiency obtainable and feature long lasting optimum performance. These synthetic filters, made of non-woven cotton, plus polyester which have been specially manufactured for high dust holding air filtration, with maximum efficiency rating. Frame styles, Aluminum / Gl / Stainless steel frame construction, serve all kinds of air filtration requirements.

AERO 1 – Aluminum / Galvanized steel / Stainless steel Frames. Models: AERO 1- 4″ / 6″. Leakage proof Frame styles. AEROSYS manufactures a complete line of metallic filters for various residential, commercial and industrial applications. These are available in a wide range of standard,special and custom sizes, designs and shapes to meet virtually every air filtration requirement. They are of the highest quality and efficiency obtainable and feature long lasting optimum performance. AEROSYS. manufactures a wide range of metallic filters with media as Aluminum or Stainless Steel, with frame styles, Aluminum / Gl / Stainless steel frame construction to serve all kinds of air filtration requirements.

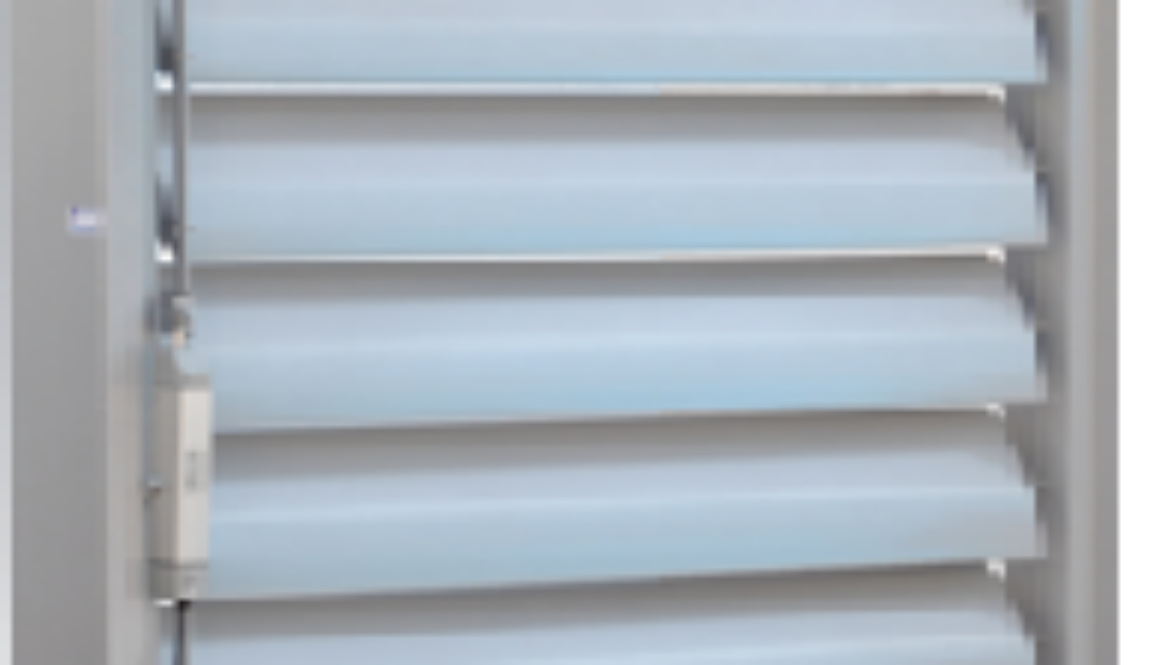

Motorized Sunshade Louvers are designed for zero solar heat gain by shutting out light. Easily managed by the buildings environmental control system, this product solves many light infusion issues. Sunshades are an attractive means to obstruct undesired sun and heat gain while allowing natural light into your building. The aero foil type blades for sunshade louvers add an attractive design element to your building.

1W – Wall mounted; 1D – Duct mounted; 1F – Flush mounted.
AEROSYS Sand Trap Louvers is designed with weather proof external coating for air inlets and discharge openings, suitable for most external walls and screening applications. They are specially designed to separate the sand and dust from the air. It is effective and necessary to apply for ventilation and inlet ducts of air handling units. As the assembly comes with complete aluminum extruded profile* / Galvanized steel sheet / Stainless steel unit. It is corrosion resistant and suitable for different weather conditions. These sand trap louvers are manufactured as per ADC1602 and DW142 class C standard.

1W – Wall mounted; 1D – Duct mounted; 1F – Flush mounted.

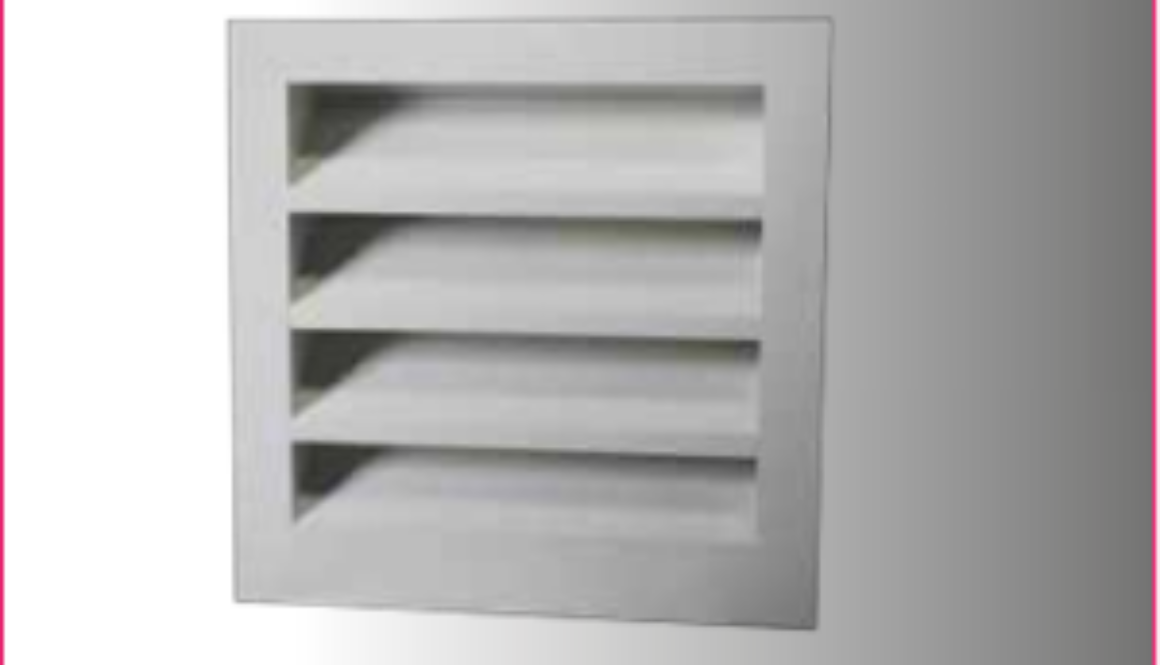

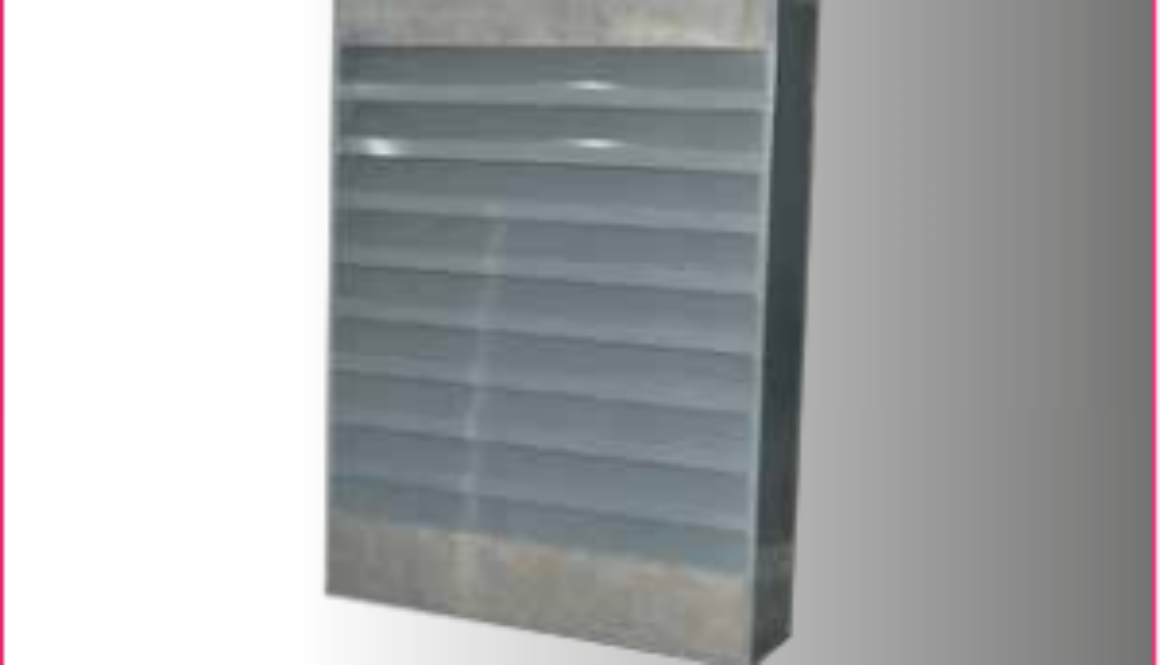

AEROSYS weather Louvers is designed with weather proof external coating for air inlets and discharge openings, suitable for most external walls and screening applications. The WL is composed of frame and horizontal blade assembly, manufactured from high quality extruded aluminum  profiles. Blades are fixed rigidly to the main frame by rivets and sets at angle of 45/35 deg to the horizontal with 40/60/80 mm spacing to incline downward to protect against rain water. We manufactured them in accordance to AMCA standards for pressure drop & efficiency. We can also supply them with bird screen & aluminum filter for fresh air intake. Weather louvers are composed of frame and horizontal blade assembly, manufactured from high quality extruded aluminum profiles* / Galvanized steel sheet / Stainless steel with the advantages of corrosion resistance and rigidity. These Weather louvers constructions conforms the standards of ADC 1602 and DW142 class C.

1FB – Flat blade design; 1VB – V-shaped blade design; 1AB – Aero foil shaped blade design.
AEROSYS Acoustic Louvers are used to reduce mechanical equipment noise transmitted through building openings or from openings in acoustic enclosures or barrier walls. Our Acoustic Louvers are available in galvanized steel, stainless steel or aluminum construction with various surface finishes in order to meet project architectural requirements. We manufacture them in accordance to ASTM & AMCA standards for transmission loss and pressure drop, and we can supply them with bird screen. As with all noise control products, acoustic and aerodynamic performance varies with the design, and the sizing of the louvers is important to minimize concerns of pressure drop. AEROSYS trained acoustic Engineers can help ensure our Acoustic Louvers are properly selected to meet project specific requirements. Typical applications are silencing for outside air intake or exhaust air openings, ventilation openings in acoustical enclosures and acoustical barriers around cooling towers, air-cooled chillers and other outdoor equipment.

Construction: Galvanized Steel Application: Low Leakage

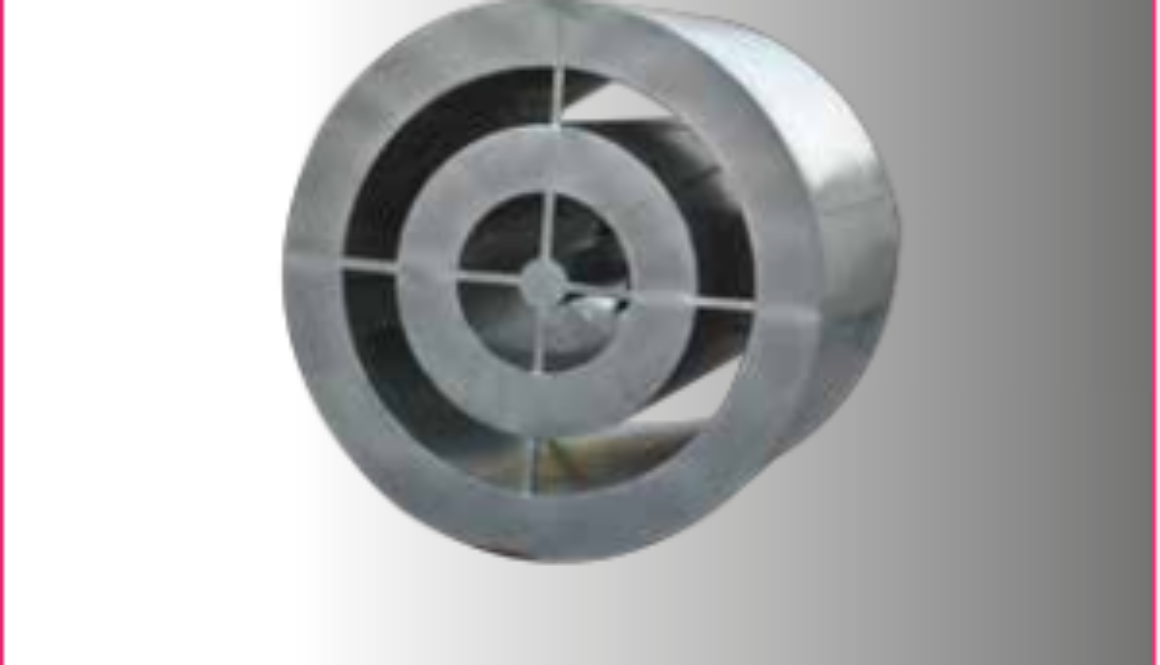

Sound attenuators are devices used to attenuate loud noises. The cylindrical type attenuators are designed for handling maximum air capacities at minimum pressure drop. The attenuators can operate at velocities up to 1600 fpm (8 m/sec.) and 2″ w.g. (500Pa) pressure. They are installed vertically or horizontally and rated for airflow and leakage as per DW-144 class C. These attenuators are installed in the duct work between spaces, which provide noise reduction of air borne noise to at least match the sound transmission loss of the separating structure. The cylindrical type Attenuators can be used where there is a demand for large amount of low frequency attenuation.

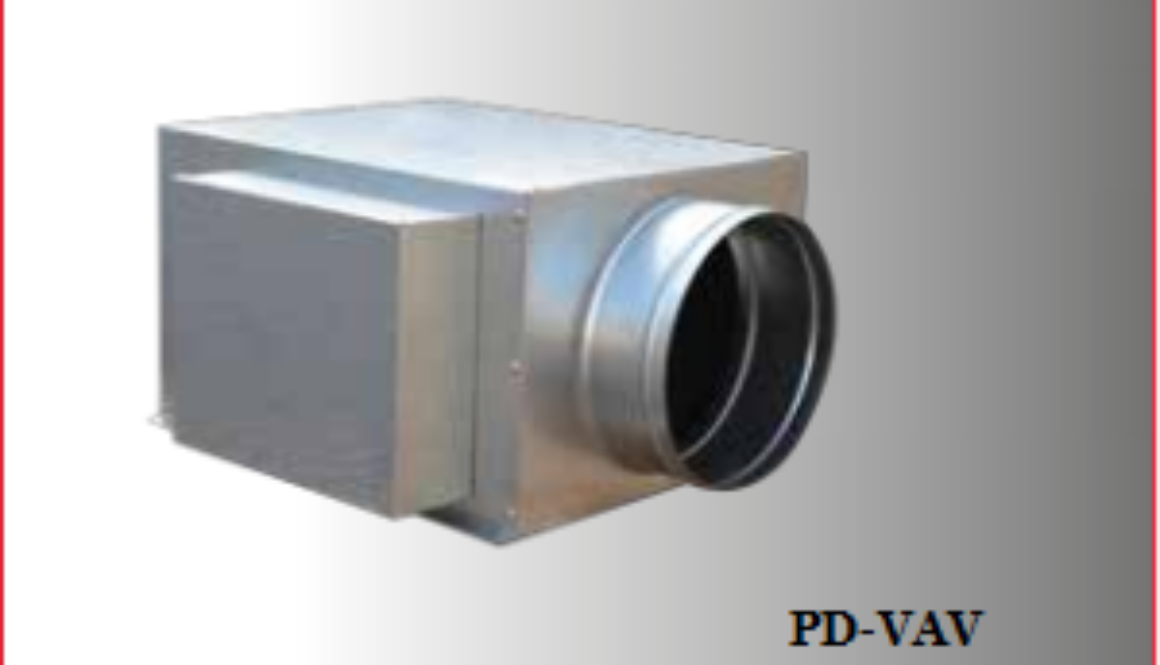

Pressure Dependent Type VAVs combine the advantages of proven air handling concepts to give complete zoning flexibility at lower cost from a single zone source. These VAVs complement by providing excellent temperature control and central air distribution with unlimited zoning, combined with common by-passing with VZD – Variable Zone Damper. The added advantage of multi-zone systems is by supplying centralized air distribution from unwanted zones to demand related zones. Easy and simple to install, can be used with packaged / ducted / air handling units in any buildings or offices and can be easily modified or relocated as per interior requirements.
